What Is Rebar Mapping? A Practical Guide for Concrete Projects
What is rebar mapping? It is the process of locating and recording reinforcing steel inside concrete so a project team can make better-informed decisions about drilling, cutting, or other work. The result is a field reference showing detected reinforcement locations—not a view through the entire slab or a guarantee that every hidden condition has been found.
Request a project-specific quote
What does a rebar map show?
A rebar map is a marked or documented representation of reinforcement detected in a defined concrete area. Depending on the survey and how results are delivered, it may show approximate bar paths, spacing patterns, orientation, and the positions of areas scanned. Field marks might be placed directly on the slab, while a drawing, photo record, or other documentation can help the project team refer to the findings later.
Mapping helps convert a hidden condition into information that can be considered during work planning. For example, if a contractor needs to form a new opening, a map may help identify a potential location that avoids detected bars. A project team can then review that location against structural plans, the intended opening, other embedded items, and the engineer’s requirements.
The map is not a structural design, approval to cut reinforcement, or an assurance that a proposed opening is safe. It records the results of a particular survey under particular site conditions. The responsible project professionals still need to decide whether a location is suitable and what approvals are required.
How is rebar mapping performed?

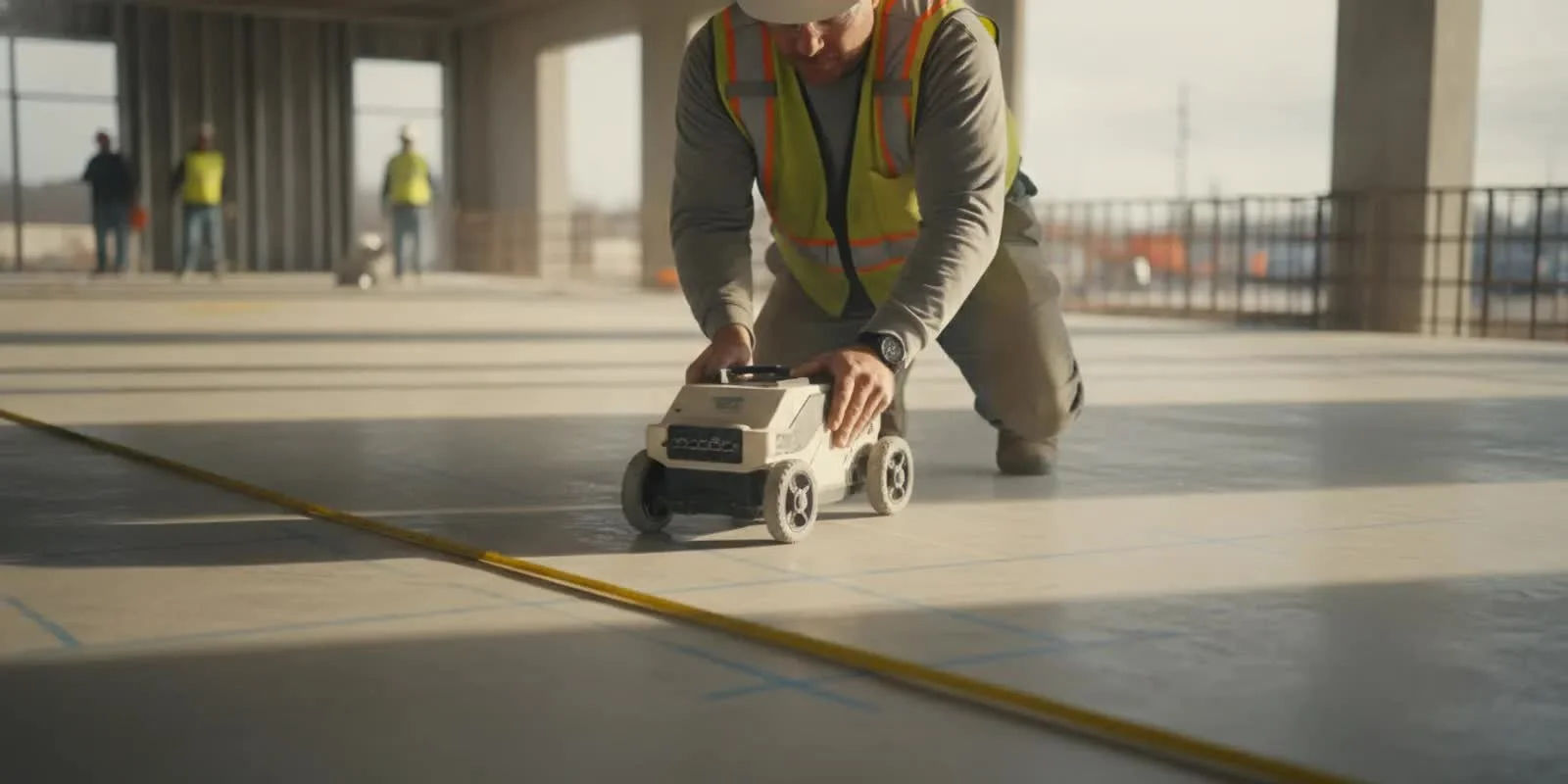

Ground-penetrating radar (GPR) is one method used to locate and map reinforcement in concrete. A technician moves a radar antenna over the surface along planned scan paths. The equipment records responses from interfaces and objects below the surface. A trained operator interprets those responses, relates them to the scan paths, and marks or documents features that appear consistent with reinforcement.
The Federal Highway Administration describes GPR as a rapid, nondestructive testing method that can identify and map concrete cover and reinforcement configuration in bridge applications. That is a useful example of how radar data can support mapping; it does not mean every slab, setup, or project will produce the same level of detail. Read the FHWA overview of GPR for locating reinforcement.
On a typical job, the work starts with defining the target area and intended activity. The technician checks access and surface conditions, establishes scan paths, collects readings, interprets relevant indications, and transfers the findings to marks or project documentation. The precise approach depends on the concrete, the question being asked, the size and geometry of the area, and the information the next crew needs.
Mapping is often discussed alongside concrete scanning, but the terms are not interchangeable in every context. A scan is the data-gathering activity; a map is an interpreted and communicated representation of findings. For broader background on the scanning process, see this guide to concrete scanning with GPR.
Why map reinforcement before drilling or cutting?
Concrete slabs and walls can contain reinforcement that is not visible from the surface. A planned core, saw cut, or penetration may intersect a bar if the work location is selected from surface appearance alone. A pre-work map gives the project team another source of information to consider before setting out the work.
Plan a proposed opening: A detected bar path may prompt the team to reconsider the exact location or dimensions of a penetration.
Coordinate trades: MEP, concrete, and general-contracting teams can discuss the planned route using shared marks or records.
Reduce avoidable surprises: Reviewing detected reinforcement in advance can help flag a conflict before drilling or cutting begins.
Document a surveyed area: Marks or a saved record can help communicate what was scanned and where findings were observed.
These are planning benefits, not a promise that scanning eliminates risk. The map should be considered with structural information, the scope of work, other utility-locating methods when needed, and site-specific direction. For a closer look at how drilling is planned around concrete conditions, review the Georgia project guide to concrete core drilling and the MEP planning guide for core drilling.
What can affect the usefulness of a rebar map?
A map is only as useful as the survey conditions, the defined scope, and the way findings are communicated. Before relying on it, ask what area was covered and what conditions could affect interpretation.
Surface access: Equipment needs an accessible path over the area to be scanned. Fixed equipment, finishes, debris, or an irregular surface may limit coverage or affect the survey plan.
Concrete and reinforcement conditions: Slab thickness, material properties, reinforcement arrangement, and the presence of multiple layers can influence how clearly responses can be interpreted.
Other embedded objects: Conduit, piping, cables, and other inclusions may create responses that need interpretation. A rebar-focused mapping request may not, by itself, answer every question about all embedded items.
Access to the opposite face: Some project questions may require information from more than one surface or a different method. Clarify what surfaces are included rather than assuming the map covers both sides.
Survey boundaries: Findings apply to the area and paths actually surveyed. An unscanned section should not be treated as confirmed clear simply because it is next to a marked area.
Marking and handoff: Surface marks can be disturbed by traffic, cleaning, or later work. The crew receiving the information needs to know how the marks correspond to the drawing or record.
GPR is a nondestructive method, but interpretation is still involved. A result should not be presented as an exact inventory of every steel bar or embedded object unless the scope and method support that conclusion. If a project needs a specific measurement or a structural determination, identify that requirement before the survey so the appropriate professional can define the needed work.
What should you tell a scanning contractor?
A clear request helps the scanning team focus on the decision the project needs to make. Instead of asking only for “a rebar scan,” describe the work that will follow and the area in question. Share available drawings and project constraints, while noting that existing plans may not reflect current field conditions.
Describe the planned work. Is the team preparing a core, a saw cut, an opening, or a demolition scope? State the proposed location and approximate dimensions.
Identify the decision point. Explain whether the goal is to review a route, check a proposed cut area, document reinforcement patterns, or answer another defined question.
Define the area. Provide slab or wall location, access details, boundaries, and any restrictions on working hours or site movement.
Share project information. Provide structural drawings or other relevant plans if available, and point out known repairs, changes, or unusual conditions.
Ask about the deliverable. Confirm whether findings will be marked on the concrete, shown on a sketch or plan, photographed, or delivered in another agreed format.
Coordinate the next crew. Confirm when marks will be made, how long they are expected to remain useful, and who will review them before work starts.
It can also help to distinguish the reinforcement question from the broader work scope. For example, a scan requested to inform a core location is not automatically a complete utility survey of the building. If the project includes concrete sawing, explain the cut path and work limits. This concrete cutting planning guide outlines the kind of scope information that helps teams coordinate cutting work.
How should a project team use the map?
Start by checking that the mapped area matches the planned work area. Compare marks or records with the proposed opening location, dimensions, drawings, and field layout. If the intended work has moved since the scan, do not assume the former map automatically covers the new location.
Next, confirm that the people who will perform or authorize the work understand what the marks represent. A marked path should be treated as an interpreted finding, not as a cut line or an approval. If the findings conflict with the design, raise the issue with the project’s structural engineer or other responsible professional before changing the work.
Finally, coordinate timing. Surface markings can become difficult to interpret if they are covered, altered, or separated from their records. The scanning crew and the cutting or drilling crew should agree on the handoff, the reference points, and any limits on the areas that were surveyed. When the next task is core drilling, the core drilling and GPR scanning service page provides a relevant point of contact for discussing the scope. You can also review how concrete drilling services are matched to project needs.
Consider a simple example: a team scans a rectangular area for a planned core, then the mechanical layout shifts the opening several inches to clear a new route. Even if the new point appears close to the original mark, the team should check whether it falls within the surveyed coverage and whether the recorded information addresses that point. The scan’s age matters less than whether the work area, conditions, and purpose still match the survey. If they do not, ask the scanning provider and the responsible project professional how to proceed instead of extending the map by assumption.
Keep a record of the decision as well as the marks. A dated photo showing the survey boundaries and nearby fixed references can help a later crew understand where the information applies. Pair it with the sketch or report, and identify any layout changes made after the scan. This does not turn the findings into an engineering approval; it makes the handoff easier to interpret and reduces the chance that one crew acts on a different version of the plan.
How is rebar mapping different from locating one bar?
Locating one bar answers a narrow question about a specific point or path. Mapping aims to build a broader picture across a defined area, such as the direction and pattern of detected reinforcement. A small check may be enough for a limited task, but a larger opening or coordinated set of penetrations may call for a more deliberate scan plan and clearer documentation.
Scope matters more than the label. Ask what area will be covered, how findings will be marked, and whether the deliverable addresses the decision your team must make. If the request also involves identifying objects beyond reinforcement, say so. That may affect the survey scope and the way results are interpreted. A related article on how GPR detects rebar explains the detection topic in more detail.
For instance, one isolated core location may call for checking a defined spot and its immediate work area. A sequence of penetrations across a corridor can raise a different planning need: the crew may want to see the repeated layout in context and keep each proposed opening tied to a shared reference. Neither label automatically guarantees a particular method or level of detail. Describe the number and size of proposed openings, the spacing between them, and the documentation the following crew needs, then confirm that the proposed scope fits.
What is not included in a rebar map?
A rebar map should not be treated as a complete record of everything inside a slab. A survey focused on reinforcement may not identify every conduit, pipe, cable, void, or other embedded feature. Likewise, a map of a specific area does not establish conditions beyond its boundaries. If the project needs information about a different kind of object or a larger zone, describe that separate need before work is scoped.
The map also does not replace drawings, structural review, or field coordination. Existing drawings can provide useful context, but they may not show every change made after construction. Conversely, a scan result is an interpreted observation from the surveyed conditions and should not be treated as a revised structural drawing. If a proposed cut appears to conflict with reinforcement or the design, pause and ask the responsible professional to resolve the conflict.
Nor does a map decide whether reinforcing steel may be cut, altered, or left in place. That decision can depend on structural function, the location and size of the proposed opening, building requirements, and project approvals. The scanning information helps inform that discussion; it does not substitute for engineering judgment. Be cautious of any handoff that calls an area “clear” without stating the scanned limits and the meaning of that term.
These distinctions are useful when contractors compare proposals. Rather than comparing only the words “scan” or “map,” compare the area, purpose, included methods, deliverable, and stated limitations. A clearly scoped survey is easier to review and hand off than an undefined request for a general scan.
What should a useful rebar mapping handoff include?
A good handoff makes the findings usable by the people planning the next operation. At a minimum, the project team should be able to identify the surveyed area, the date or phase of the survey, the marks or symbols used, and any scope limits that affect interpretation. If the findings are shown on a drawing or sketch, confirm that it is oriented to recognizable site references.
Before the crew begins work, use a brief review to confirm:
The planned cut or drill location is inside the surveyed area.
The marks still correspond to the provided record and have not been moved or obscured.
Any noted uncertainty or scope limitation is understood.
The planned work still matches the dimensions and location that were discussed during scanning.
Questions about structural changes or reinforcement have been sent to the appropriate design professional.
Also agree on a practical reference system. The receiving crew should know which edge, gridline, wall, or other fixed feature anchors the measurements, and whether marks indicate a detected bar path, a scan boundary, or a proposed work location. If colored marks or symbols are used, confirm their meaning rather than relying on memory or assumptions. If the surface is likely to be cleaned or covered before work begins, make sure the agreed documentation remains available to the people who need it.
This final check is particularly valuable when several trades share a work zone or when the layout changes between scanning and installation. For related preparation around concrete cutting bids and work limits, see the concrete cutting project cost guide.
How can you compare mapping scopes?
When reviewing proposals, compare the questions each scope is designed to answer rather than assuming that similar labels mean identical work. A focused check of one proposed penetration may have a smaller boundary than mapping a broad slab zone for several openings. Ask whether scan coverage includes the whole proposed work footprint, how findings will be transferred to the surface, and what record will be provided afterward.
It is also useful to separate the survey scope from decisions made after the survey. One proposal may describe on-site markings; another may include a sketch or photo record. The important point is to understand the deliverable and confirm that it supports the crew’s next step. If two bids use different terms, ask each provider to explain the area, methods, expected handoff, and limitations in plain language. Do not infer that a more expansive deliverable authorizes a cut or replaces structural review.
Before scheduling, identify any assumptions that could change the work: access to the surface, furniture or equipment that needs moving, the exact opening dimensions, and whether the marked zone may be exposed to later trades. Resolve practical questions early so the scanning visit is focused on a defined decision, not an open-ended request for information.
Contact us to discuss your concrete project
Frequently asked questions
Does rebar mapping require drilling into the concrete?
GPR is a nondestructive method that gathers information from the surface, so the scan itself does not require drilling through the slab. The later construction work may still involve drilling or cutting, which is why findings need to be reviewed as part of the project plan.
Can a rebar map show every bar in a slab?
No map should be assumed to show every bar or every embedded item under all conditions. Coverage and interpretation depend on the surveyed area, site conditions, equipment, and the defined scope. Ask what was actually examined and what limitations apply.
Does a rebar map approve a proposed opening?
No. It provides information about detected conditions in the surveyed area. The project’s responsible design professional must address structural implications and approvals for a proposed opening or any change affecting reinforcement.
How early should scanning happen before concrete work?
Plan it early enough for the team to review results and resolve conflicts before the cutting or drilling crew is ready to work. The right timing depends on access, schedule, area size, and how quickly the project can make decisions after receiving the findings.
Rebar mapping is most useful when its purpose, boundaries, limitations, and handoff are clear. Share the planned work and site information up front, then have the project team review the findings before concrete cutting, drilling, or demolition proceeds.
